i2cdev.c File Reference

#include <string.h>
#include <inttypes.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <esp_log.h>
#include "i2cdev.h"

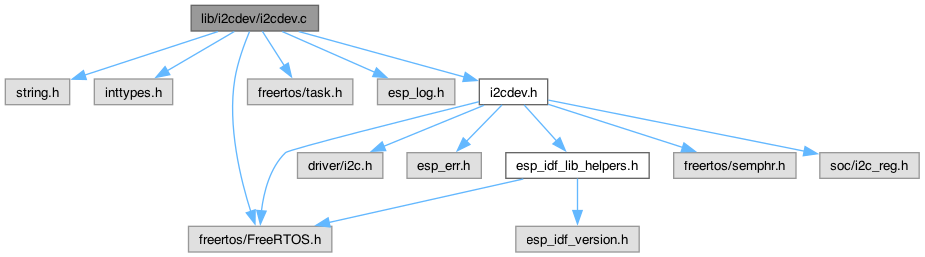

Include dependency graph for i2cdev.c:

Classes
struct	i2c_port_state_t

Macros
#define	SEMAPHORE_TAKE(port)
#define	SEMAPHORE_GIVE(port)

Functions
esp_err_t	i2cdev_init ()
	Init library.
esp_err_t	i2cdev_done ()
	Finish work with library.
esp_err_t	i2c_dev_create_mutex (i2c_dev_t *dev)
	Create mutex for device descriptor.
esp_err_t	i2c_dev_delete_mutex (i2c_dev_t *dev)
	Delete mutex for device descriptor.
esp_err_t	i2c_dev_take_mutex (i2c_dev_t *dev)
	Take device mutex.
esp_err_t	i2c_dev_give_mutex (i2c_dev_t *dev)
	Give device mutex.
static bool	cfg_equal (const i2c_config_t *a, const i2c_config_t *b)
static esp_err_t	i2c_setup_port (const i2c_dev_t *dev)
esp_err_t	i2c_dev_probe (const i2c_dev_t *dev, i2c_dev_type_t operation_type)
	Check the availability of the device.
esp_err_t	i2c_dev_read (const i2c_dev_t *dev, const void *out_data, size_t out_size, void *in_data, size_t in_size)
	Read from slave device.
esp_err_t	i2c_dev_write (const i2c_dev_t *dev, const void *out_reg, size_t out_reg_size, const void *out_data, size_t out_size)
	Write to slave device.
esp_err_t	i2c_dev_read_reg (const i2c_dev_t *dev, uint8_t reg, void *in_data, size_t in_size)
	Read from register with an 8-bit address.
esp_err_t	i2c_dev_write_reg (const i2c_dev_t *dev, uint8_t reg, const void *out_data, size_t out_size)
	Write to register with an 8-bit address.

Variables
static const char *	TAG = "i2cdev"
static i2c_port_state_t	states [I2C_NUM_MAX]

Detailed Description

ESP-IDF I2C master thread-safe functions for communication with I2C slave

Copyright (c) 2018 Ruslan V. Uss uncle.nosp@m.rus@.nosp@m.gmail.nosp@m..com

MIT Licensed as described in the file LICENSE

Macro Definition Documentation

SEMAPHORE_GIVE

#define SEMAPHORE_GIVE

(

port

)

Value:

        do { \
        if (!xSemaphoreGive(states[port].lock)) \
        { \
            ESP_LOGE(TAG, "Could not give port mutex %d", port); \
            return ESP_FAIL; \
        } \
        } while (0)

SEMAPHORE_TAKE

#define SEMAPHORE_TAKE

(

port

)

Value:

        do { \
        if (!xSemaphoreTake(states[port].lock, pdMS_TO_TICKS(CONFIG_I2CDEV_TIMEOUT))) \
        { \
            ESP_LOGE(TAG, "Could not take port mutex %d", port); \
            return ESP_ERR_TIMEOUT; \
        } \
        } while (0)

Function Documentation

cfg_equal()

bool cfg_equal ( const i2c_config_t * a, const i2c_config_t * b )

inlinestatic

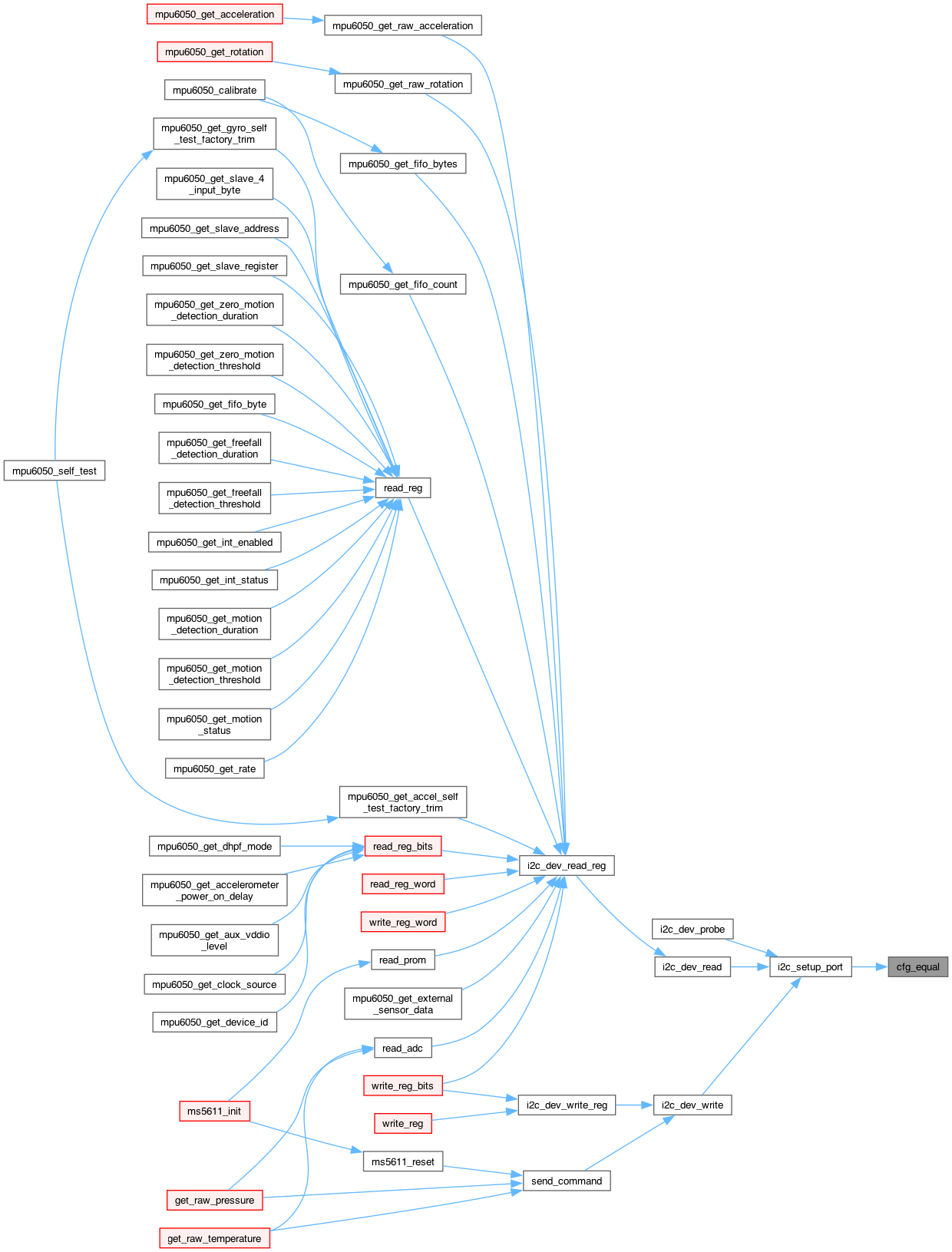

Here is the caller graph for this function:

i2c_setup_port()

esp_err_t i2c_setup_port ( const i2c_dev_t * dev )

static

< Invalid argument

< esp_err_t value indicating success (no error)

Here is the call graph for this function:

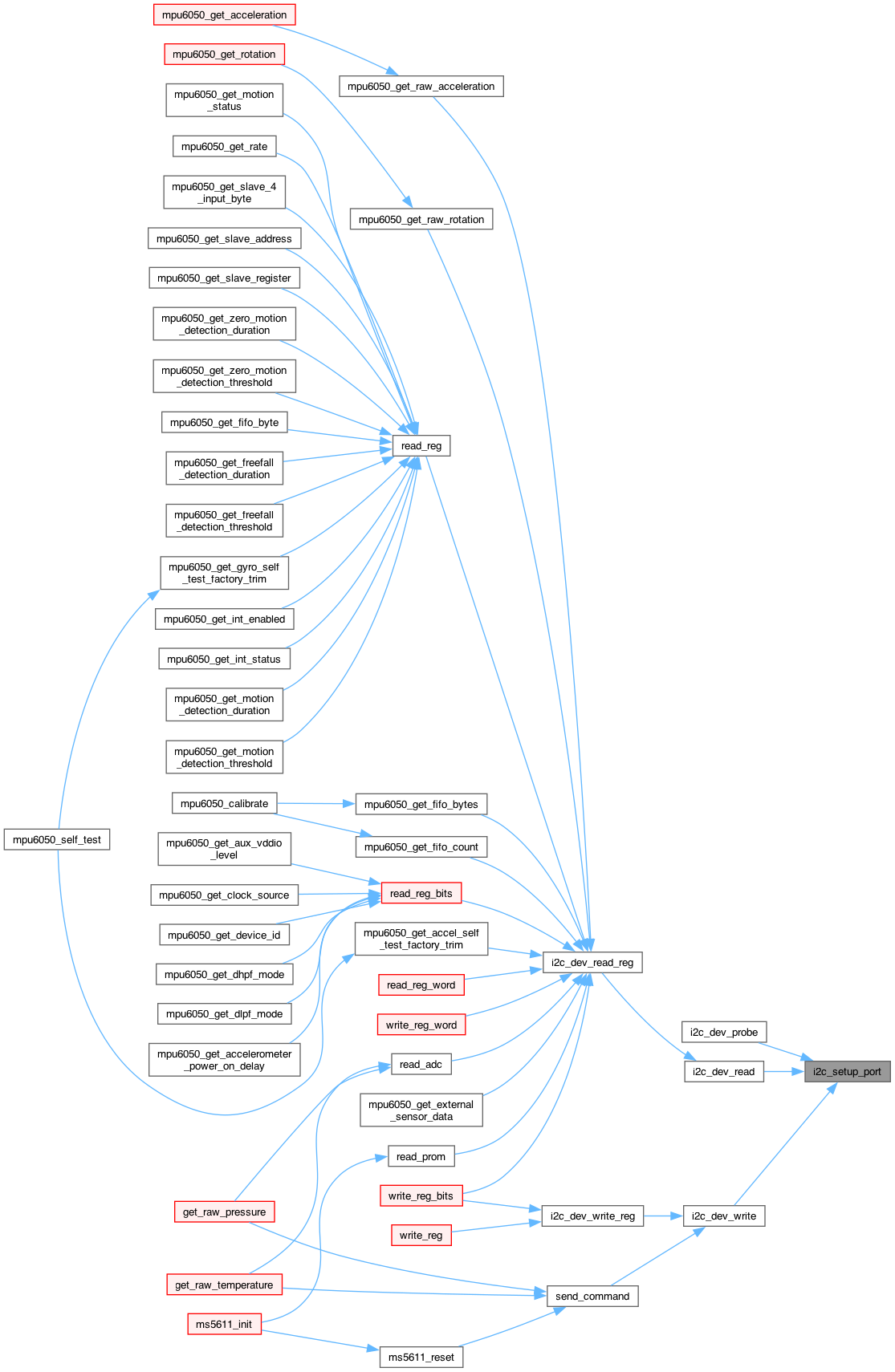

Here is the caller graph for this function:

Variable Documentation

states

i2c_port_state_t states[I2C_NUM_MAX]

static

TAG

const char* TAG = "i2cdev"

static
