i2cdev

Classes
struct	i2c_dev_t

Macros
#define	CONFIG_I2CDEV_TIMEOUT   1000
#define	I2CDEV_MAX_STRETCH_TIME   I2C_TIME_OUT_REG_V
#define	I2C_DEV_TAKE_MUTEX(dev)
#define	I2C_DEV_GIVE_MUTEX(dev)
#define	I2C_DEV_CHECK(dev, X)
#define	I2C_DEV_CHECK_LOGE(dev, X, msg, ...)

Enumerations
enum	i2c_dev_type_t { I2C_DEV_WRITE = 0 , I2C_DEV_READ }

Functions
esp_err_t	i2cdev_init ()
	Init library.
esp_err_t	i2cdev_done ()
	Finish work with library.
esp_err_t	i2c_dev_create_mutex (i2c_dev_t *dev)
	Create mutex for device descriptor.
esp_err_t	i2c_dev_delete_mutex (i2c_dev_t *dev)
	Delete mutex for device descriptor.
esp_err_t	i2c_dev_take_mutex (i2c_dev_t *dev)
	Take device mutex.
esp_err_t	i2c_dev_give_mutex (i2c_dev_t *dev)
	Give device mutex.
esp_err_t	i2c_dev_probe (const i2c_dev_t *dev, i2c_dev_type_t operation_type)
	Check the availability of the device.
esp_err_t	i2c_dev_read (const i2c_dev_t *dev, const void *out_data, size_t out_size, void *in_data, size_t in_size)
	Read from slave device.
esp_err_t	i2c_dev_write (const i2c_dev_t *dev, const void *out_reg, size_t out_reg_size, const void *out_data, size_t out_size)
	Write to slave device.
esp_err_t	i2c_dev_read_reg (const i2c_dev_t *dev, uint8_t reg, void *in_data, size_t in_size)
	Read from register with an 8-bit address.
esp_err_t	i2c_dev_write_reg (const i2c_dev_t *dev, uint8_t reg, const void *out_data, size_t out_size)
	Write to register with an 8-bit address.

Detailed Description

ESP-IDF I2C master thread-safe functions for communication with I2C slave

Copyright (c) 2018 Ruslan V. Uss uncle.nosp@m.rus@.nosp@m.gmail.nosp@m..com

MIT Licensed as described in the file LICENSE

Macro Definition Documentation

CONFIG_I2CDEV_TIMEOUT

#define CONFIG_I2CDEV_TIMEOUT   1000

I2C_DEV_CHECK

#define I2C_DEV_CHECK	(		dev,
			X )

Value:

  do {                                                                         \
    esp_err_t ___ = X;                                                         \
    if (___ != ESP_OK) {                                                       \
      I2C_DEV_GIVE_MUTEX(dev);                                                 \
      return ___;                                                              \
    }                                                                          \
  } while (0)

I2C_DEV_CHECK_LOGE

#define I2C_DEV_CHECK_LOGE	(		dev,
			X,
			msg,
			... )

Value:

  do {                                                                         \
    esp_err_t ___ = X;                                                         \
    if (___ != ESP_OK) {                                                       \
      I2C_DEV_GIVE_MUTEX(dev);                                                 \
      ESP_LOGE(TAG, msg, ##__VA_ARGS__);                                       \
      return ___;                                                              \
    }                                                                          \
  } while (0)

I2C_DEV_GIVE_MUTEX

#define I2C_DEV_GIVE_MUTEX

(

dev

)

Value:

  do {                                                                         \
    esp_err_t __ = i2c_dev_give_mutex(dev);                                    \
    if (__ != ESP_OK)                                                          \
      return __;                                                               \
  } while (0)

I2C_DEV_TAKE_MUTEX

#define I2C_DEV_TAKE_MUTEX

(

dev

)

Value:

  do {                                                                         \
    esp_err_t __ = i2c_dev_take_mutex(dev);                                    \
    if (__ != ESP_OK)                                                          \
      return __;                                                               \
  } while (0)

I2CDEV_MAX_STRETCH_TIME

#define I2CDEV_MAX_STRETCH_TIME   I2C_TIME_OUT_REG_V

Enumeration Type Documentation

i2c_dev_type_t

enum i2c_dev_type_t

I2C transaction type

Enumerator
I2C_DEV_WRITE	Write operation
I2C_DEV_READ	Read operation

Function Documentation

i2c_dev_create_mutex()

esp_err_t i2c_dev_create_mutex

(

i2c_dev_t *

dev

)

Create mutex for device descriptor.

This function does nothing if option CONFIG_I2CDEV_NOLOCK is enabled.

Parameters

dev	Device descriptor

Returns

ESP_OK on success

< Invalid argument

< Generic esp_err_t code indicating failure

< esp_err_t value indicating success (no error)

Here is the caller graph for this function:

i2c_dev_delete_mutex()

esp_err_t i2c_dev_delete_mutex

(

i2c_dev_t *

dev

)

Delete mutex for device descriptor.

This function does nothing if option CONFIG_I2CDEV_NOLOCK is enabled.

Parameters

dev	Device descriptor

Returns

ESP_OK on success

< Invalid argument

< esp_err_t value indicating success (no error)

Here is the caller graph for this function:

i2c_dev_give_mutex()

esp_err_t i2c_dev_give_mutex

(

i2c_dev_t *

dev

)

Give device mutex.

This function does nothing if option CONFIG_I2CDEV_NOLOCK is enabled.

Parameters

dev	Device descriptor

Returns

ESP_OK on success

< Invalid argument

< Generic esp_err_t code indicating failure

< esp_err_t value indicating success (no error)

i2c_dev_probe()

esp_err_t i2c_dev_probe	(	const i2c_dev_t *	dev,
		i2c_dev_type_t	operation_type )

Check the availability of the device.

Issue an operation of operation_type to the I2C device then stops.

Parameters

dev	Device descriptor
operation_type	Operation type

Returns

ESP_OK if device is available

< Invalid argument

< Operation timed out

< esp_err_t value indicating success (no error)

< Generic esp_err_t code indicating failure

Here is the call graph for this function:

i2c_dev_read()

esp_err_t i2c_dev_read	(	const i2c_dev_t *	dev,
		const void *	out_data,
		size_t	out_size,
		void *	in_data,
		size_t	in_size )

Read from slave device.

Issue a send operation of out_data register address, followed by reading in_size bytes from slave into in_data . Function is thread-safe.

Parameters

	dev	Device descriptor
	out_data	Pointer to data to send if non-null
	out_size	Size of data to send
[out]	in_data	Pointer to input data buffer
	in_size	Number of byte to read

Returns

ESP_OK on success

< Invalid argument

< Operation timed out

< esp_err_t value indicating success (no error)

< esp_err_t value indicating success (no error)

< Generic esp_err_t code indicating failure

Here is the call graph for this function:

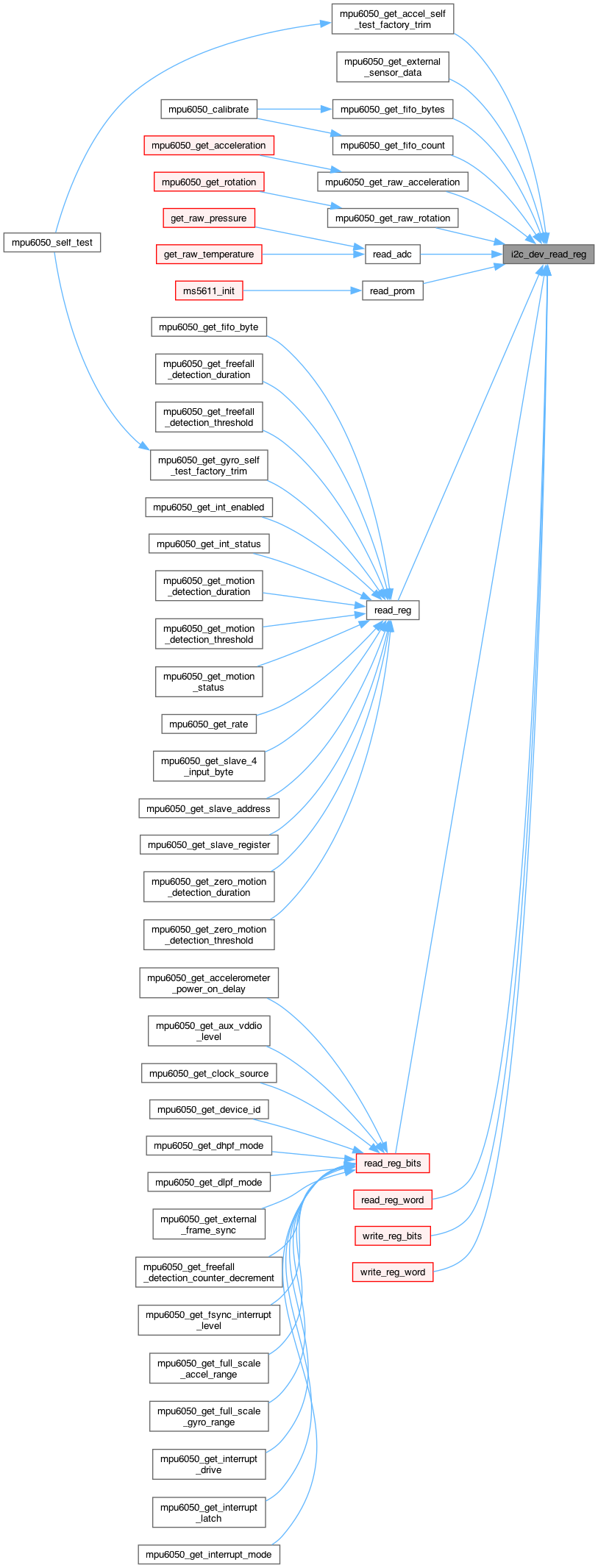

Here is the caller graph for this function:

i2c_dev_read_reg()

esp_err_t i2c_dev_read_reg	(	const i2c_dev_t *	dev,
		uint8_t	reg,
		void *	in_data,
		size_t	in_size )

Read from register with an 8-bit address.

Shortcut to i2c_dev_read().

Parameters

	dev	Device descriptor
	reg	Register address
[out]	in_data	Pointer to input data buffer
	in_size	Number of byte to read

Returns

ESP_OK on success

Here is the call graph for this function:

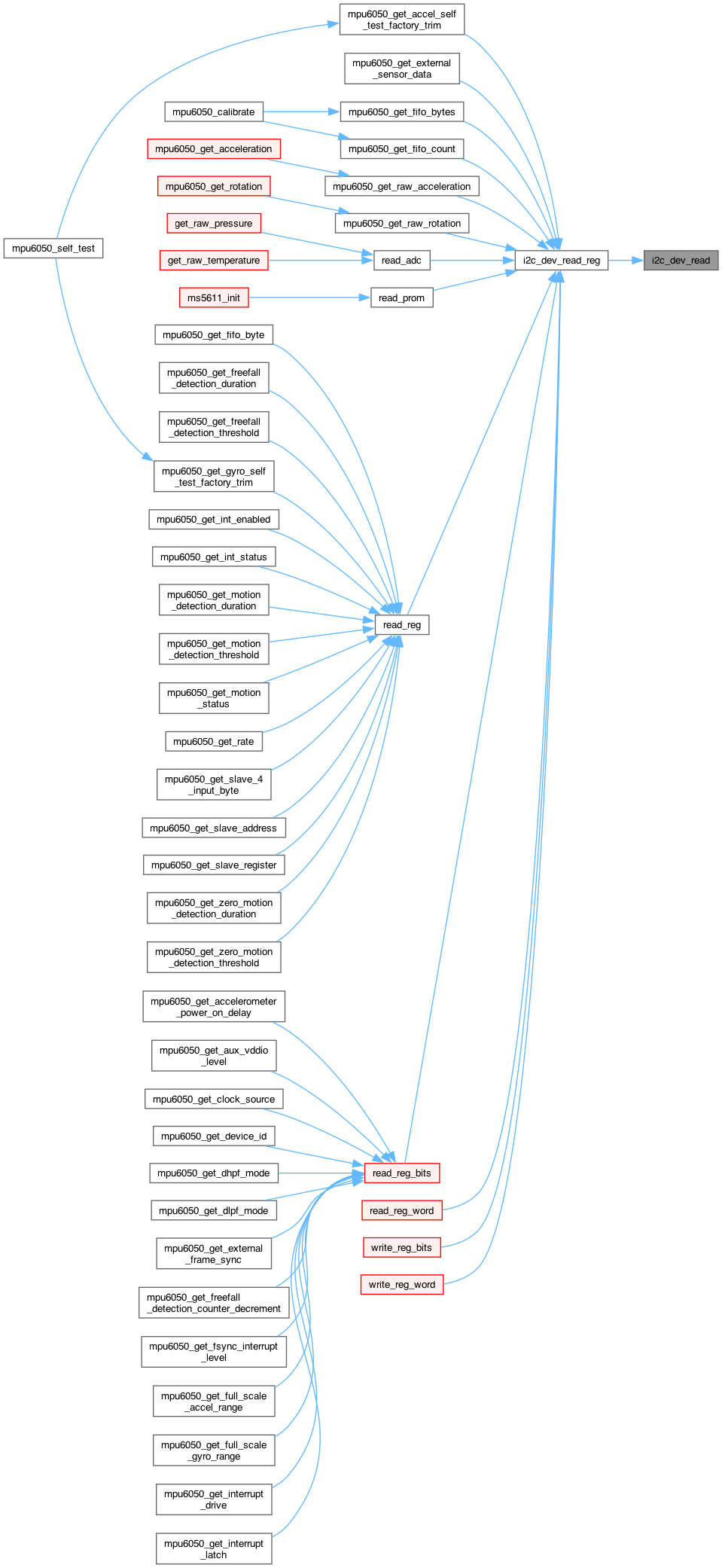

Here is the caller graph for this function:

i2c_dev_take_mutex()

esp_err_t i2c_dev_take_mutex

(

i2c_dev_t *

dev

)

Take device mutex.

This function does nothing if option CONFIG_I2CDEV_NOLOCK is enabled.

Parameters

dev	Device descriptor

Returns

ESP_OK on success

< Invalid argument

< Operation timed out

< esp_err_t value indicating success (no error)

i2c_dev_write()

esp_err_t i2c_dev_write	(	const i2c_dev_t *	dev,
		const void *	out_reg,
		size_t	out_reg_size,
		const void *	out_data,
		size_t	out_size )

Write to slave device.

Write out_size bytes from out_data to slave into out_reg register address. Function is thread-safe.

Parameters

dev	Device descriptor
out_reg	Pointer to register address to send if non-null
out_reg_size	Size of register address
out_data	Pointer to data to send
out_size	Size of data to send

Returns

ESP_OK on success

< Invalid argument

< Operation timed out

< esp_err_t value indicating success (no error)

< esp_err_t value indicating success (no error)

< Generic esp_err_t code indicating failure

Here is the call graph for this function:

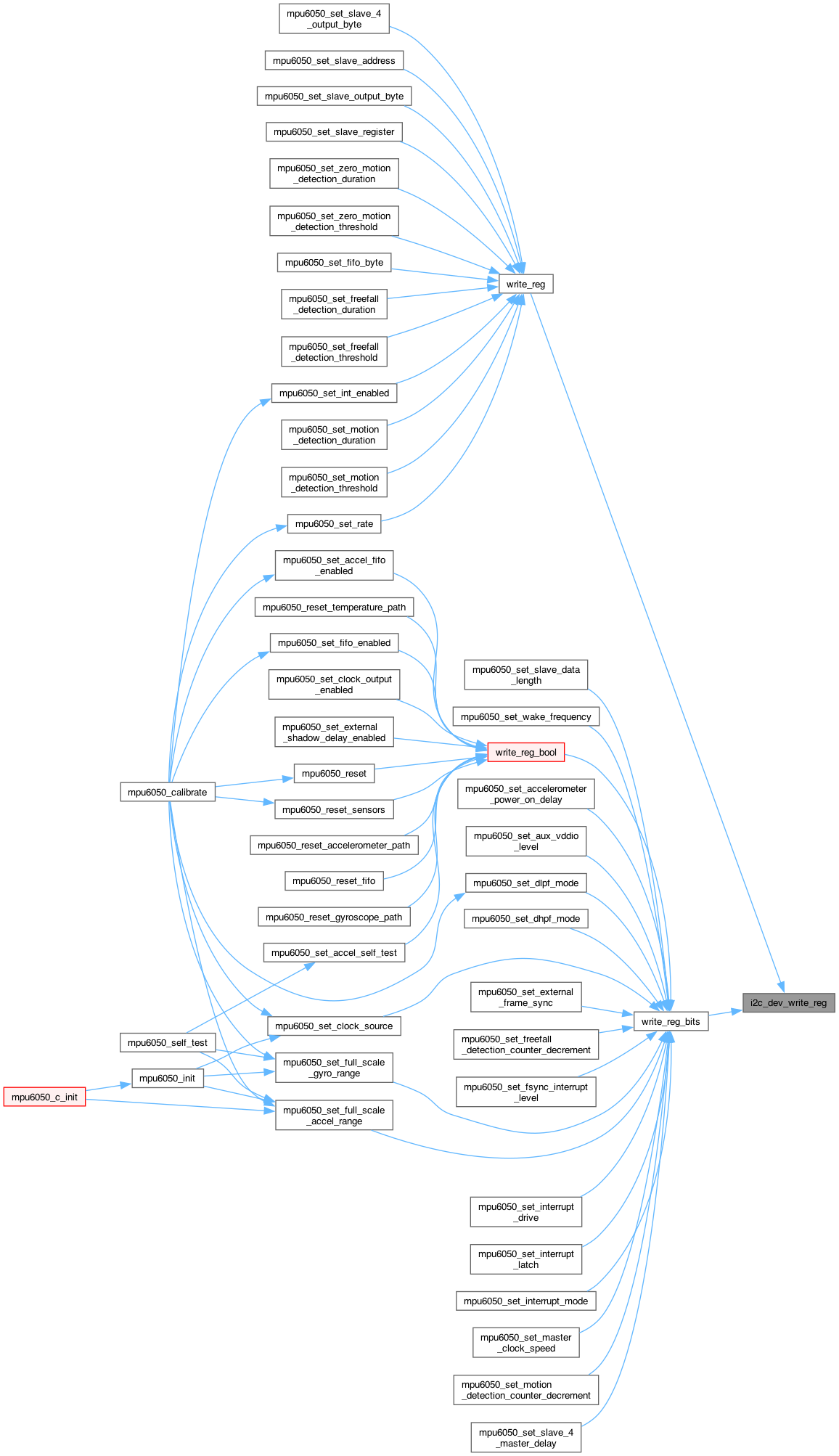

Here is the caller graph for this function:

i2c_dev_write_reg()

esp_err_t i2c_dev_write_reg	(	const i2c_dev_t *	dev,
		uint8_t	reg,
		const void *	out_data,
		size_t	out_size )

Write to register with an 8-bit address.

Shortcut to i2c_dev_write().

Parameters

dev	Device descriptor
reg	Register address
out_data	Pointer to data to send
out_size	Size of data to send

Returns

ESP_OK on success

Here is the call graph for this function:

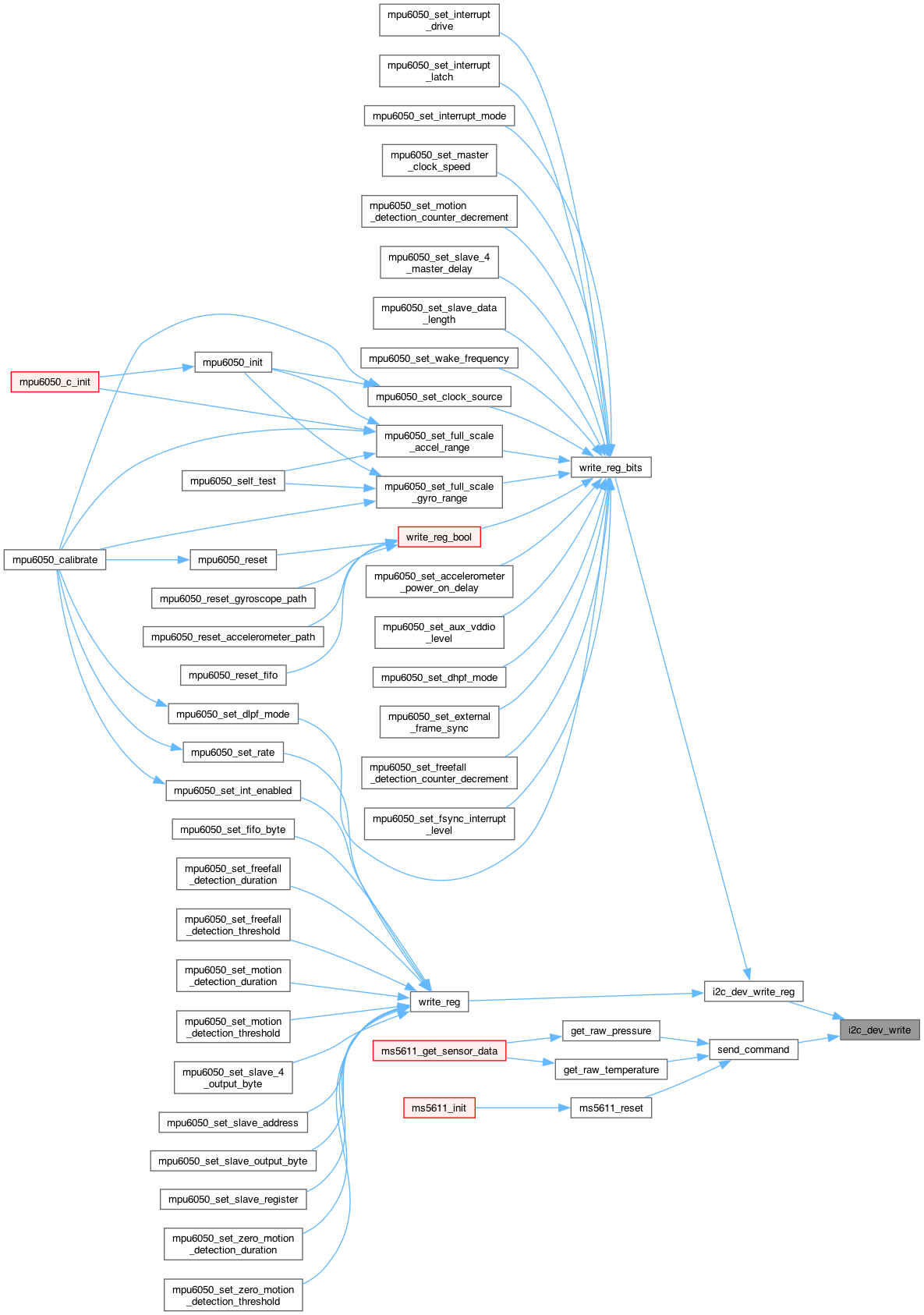

Here is the caller graph for this function:

i2cdev_done()

esp_err_t i2cdev_done

(

)

Finish work with library.

Uninstall i2c drivers.

Returns

ESP_OK on success

< Operation timed out

< Generic esp_err_t code indicating failure

< esp_err_t value indicating success (no error)

i2cdev_init()

esp_err_t i2cdev_init

(

)

Init library.

The function must be called before any other functions of this library.

Returns

ESP_OK on success

< Generic esp_err_t code indicating failure

< esp_err_t value indicating success (no error)
